Make sure that jintegra.jar, excel.jar, and excelwebservice.jar files are included in your CLASSPATH by entering the command
set CLASSPATH=%CLASSPATH%;D:\jintegra\lib\jintegra.jar;d:\Pure\excel.jar;D:\Pure\excelwebservice.jar;
Go to the bin directory of the IBM WSTK installation. Run the WSTK wsdlgen tool by entering the command
wsdlgen

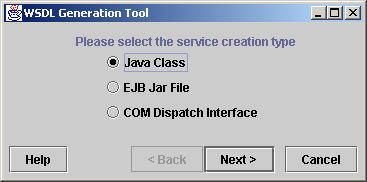

Select Java Class and click Next.

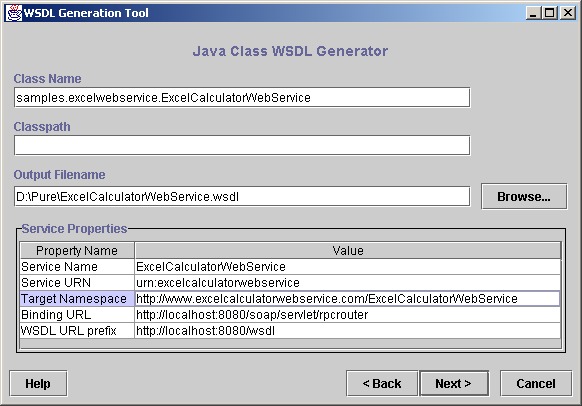

Enter samples.excelwebservice.ExcelCalculatorWebService as the Class
Name.
Enter D:\pure\ExcelCalculatorWebService.wsdl as the Output Filename.
Enter ExcelCalculatorWebService as the Service Name.
Enter urn:excelcalculatorwebservice as the Service URN.
Enter http://www.excelcalculatorwebservice.com/ExcelCalculatorWebService
as the Target Namespace.
Set the Binding URL, and WSDL URL prefix appropriately. For example, if
your Web server is on localhost and listening on port 8080,
you should set these values as http://localhost:8080/soap/servlet/rpcrouter,
and http://localhost:8080/wsdl, respectively.
Click Next. If you get a message from wsdlgen about not finding the ExcelCalculatorWebService class, or some of the classes accessed by this class, check your CLASSPATH variable. It must be set correctly so that wsdlgen can find all the classes needed to deploy this Web service.

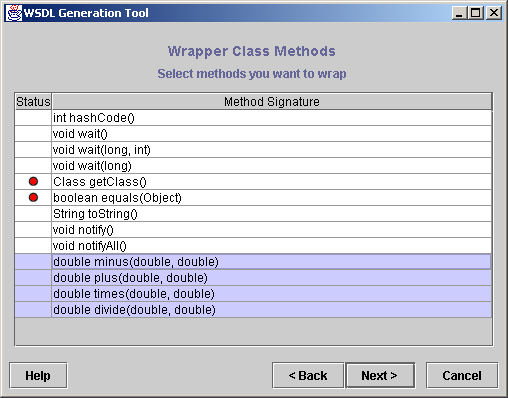

Select double minus(double, double), double plus(double, double), double times(double, double) and double divide(double, double) from the Method Signature list.

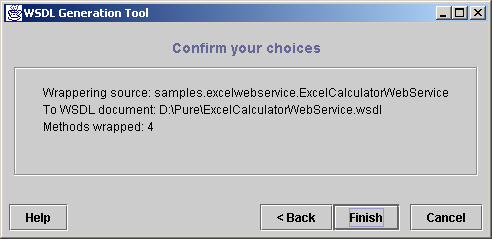

Click Next. wsdlgen displays a confirm message. Click Finish.

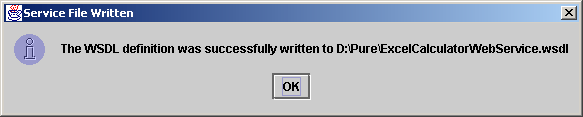

wsdelgen creates the corresponding descriptor files and displays a message to inform you it has created the files. Click OK.
Although we specified D:\Pure as the output directory, wsdlgen only outputs the wsdl files into that directory. wsdlgen outputs the XML file that we need to deploy the example (DeploymentDescriptor.xml) in the current directory. In our case the current directory is the bin directory of the WSTK installation. Copy DeploymentDescriptor.xml to D:\Pure.
Before you start the Embedded WebSphere, you must set the PATH and CLASSPATH correctly. You must make sure that all .jar files related to SOAP are in your CLASSPATH. Normally, when your run one of the samples that has been shipped with WSTK, it sets the environment variables by calling wstkenv batch file. In our case, we can run this batch file manually. Go to the bin directory of your WSTK installation directory and enter the following command:
wstkenv
WSTK sets an environment variable called WSTK_CP which contains the path to all jar files related to SOAP server. You can use this environment variable to set the CLASSPATH. While you are in D:\Pure enter the following command to set the CLASSPATH
set CLASSPATH=%CLASSPATH%;%WSTK_CP%;D:\Pure\excelwebservice.jar;D:\jintegra\lib\jintegra.jar;D:\Pure\excel.jar;
When a program wants to use a COM object, Windows needs to authenticate the client. J-Integra® comes with a native DLL file that performs the authentication on behalf of the client. This DLL is in the bin directory of J-Integra®. You should update the PATH environment variable to include this directory. To update the PATH, enter the command
set PATH=%PATH%;D:\jintegra\bin;
Start the Embedded WebSphere server by entering the command
start "WebSphere Server" "D:\wstk-2.4\bin\websphere" run
The Embedded WebSphere starts in a new DOS session window and displays some text. When you see the "HTTP Transport Started" message, your Embedded WebSphere server is ready to respond to requests. To shut down the Embedded WebSphere server, press Ctrl+C.
To deploy the example onto the Embedded WebSphere server, while you are in D:\Pure enter the command
java org.apache.soap.server.ServiceManagerClient http://localhost:8080/soap/servlet/rpcrouter deploy DeploymentDescriptor.xml
Note If you are running the Embedded WebSphere server on a different host or port, replace localhost and/or 8080 with the appropriate values.
